ASME B16.48 Raised Face
Spectacle Blanks - Paddle Blanks - Paddle Spacers

Spectacle Blank

A combination of a Paddle Blank and a Paddle Spacer fabricated, for field convenience, as a single unit. Weight limitations and the associated difficulty of handling heavy pieces in the field are the primary considerations in specifying a Spectacle or Figure 8 Blind over separate components.

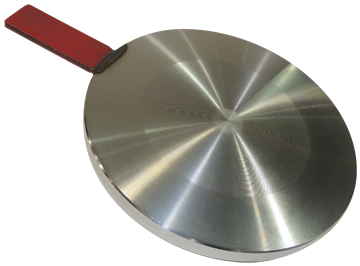

Paddle Blank

A positive shut-off device normally installed adjacent to, or in conjunction with, a valve. Their purpose is to prevent accidental flow through a pipeline or into a vessel.

Paddle Spacer

ASME B16.48 Designed Paddle Spacers are bored to the outside diameter diameter of pipe and are of the same thickness as the Paddle Blank it replaces.

Standard Finish: 125 AARH lathe finish

	Denotes Required Specifying Information
	Product Name / Description (i.e. Spectacle Blind, Single Blind, Ring Spacer)

	Nominal Pipeline size (e.g. 10")
	Material of construction (e.g. carbon steel, stainless steel - or it may be specific e.g. SA516 Gr. 70, A240 Type 304 S.S.)
	Adjacent flange class and type (e.g. 150# RF, MSS SP-44 (if using ANSI B16.47, specify series A or B)

RF / FF- For use with Raised Face or Flat Face flanges. Blind fits inside bolt holes.
FF&D - For use with Flat Face flanges. Blind has bolt holes/circle matching mating flanges.

Denotes Optional Information

	Alternate Gasket Surface/Finish (click here to see available gasket surface finishes)
	Special Dimensions
	Corrosion Allowance
	Special marking or tagging requirements
	Special QA, traceability or paperwork requirements (e.g. CMTR's)
	Oxygen cleaning (click here to see Mack Iron cleaning capabilities)

ASME B16.48 SPECTACLE BLINDS AVAILABLE FOR JUST-IN-TIME DELIVERY

Carbon Steel
(A516 Gr. 70)
150# RF

1"
1-1/2"
2"
3"
4"
6"
8"
10"
12"
14"

Carbon Steel
(A516 Gr. 70)
300# RF

1"
1-1/2"
2"
3"
4"
6"
8"
10"
12"
14"

Stainless Steel
(A240 304 SS)
150# RF

1"
1-1/2"
2"
3"
4"
6"
8"
10"
12"

Stainless Steel
(A240 304 SS)
300# RF

1"
1-1/2"
2"
3"
4"
6"
8"
10"
12"

ASME B16.48 SINGLE/PADDLE BLANKS AVAILABLE FOR JUST-IN-TIME DELIVERY
