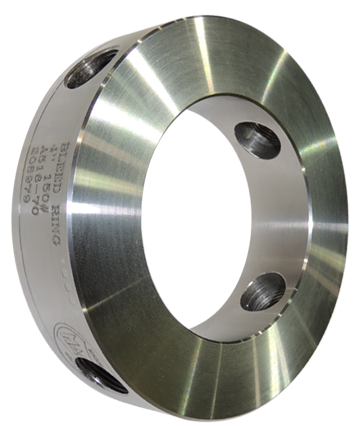

Bleed Rings

A ring section with one or more radial piping connections. These are designed to fit between standard flanges, using conventional gasketing materials. They provide a convenient method of draining piping, taking samples, or attaching instrumentation.

Standard Finish: 125 AARH finish

	Denotes Required Specifying Information
	Product Name / Description (i.e. Bleed Ring)

	Nominal Pipeline size (e.g. 10")
	Mating Class Flange
	Connection Type and Size (e.g. 3/4" tapped, 1/2" socket weld, etc.)

Material of construction (e.g. carbon steel, stainless steel - or it may be specific e.g. SA 516 Gr. 70, A240 Type 304 S.S.)

Denotes Optional Information

	Alternate Gasket Surface/Finish (click here to see available gasket surface finishes)
	Special Dimensions
	Corrosion Allowance
	Special marking or tagging requirements
	Special QA, traceability or paperwork requirements (e.g. CMTR's)
	Oxygen cleaning (click here to see Mack Iron cleaning capabilities)

BLEED RINGS AVAILABLE FOR JUST-IN-TIME DELIVERY

A516 Gr. 70
150# RF

1-1/2"
2"
3"
4"
6"
8"
10"

A516 Gr. 70
300# RF

1-1/2"
2"
3"
4"
6"
8"
10"

304 S.S.
150# RF

1"
1-1/2"
2"
3"
4"

304 S.S.
300# RF

1"
1-1/2"
2"
3"
4"
